Garmin ECHOMAP™ Ultra 102sv With GT56UHD-TM Transducer
Service de retrait disponible à Canadian Tackle Store
Habituellement prête en 24 heures
Garmin ECHOMAP™ Ultra 102sv With GT56UHD-TM Transducer
-
Canadian Tackle Store
Service de retrait disponible, habituellement prête en 24 heures
10 Kitchener Street
Orillia ON L3V 6Z9
Canada+17052597777
ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING

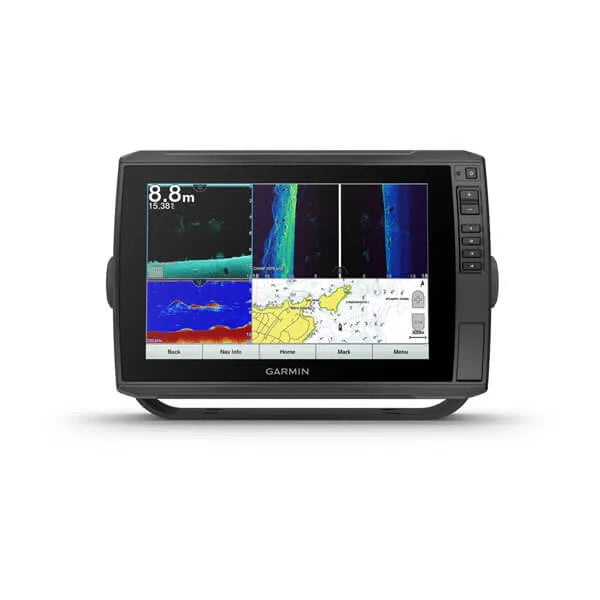

The sunlight-readable 10 inch touchscreen chartplotter/sonar combo features our worldwide basemap, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
The keyed-assist 10 inch touchscreen puts fishfinding know-how at your fingertips.
See crisp images of structure and fish in stunning detail.
Navigate confidently with optional BlueChart® g3 charts and LakeVü™ g3 maps.
Manage your marine experience from nearly anywhere with the ActiveCaptain® app1.
Connect your boat to share data, sonar and charts with your other compatible devices.
Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.
General |
|
| DIMENSION | 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) |
|---|---|
| TOUCHSCREEN | |
| INPUT | Touchscreen with Keyed Assist |
| DISPLAY SIZE | 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA, IPS |
| WEIGHT |
4.0 lbs (1.8 kg) |
| WATERPROOF |
IPX7 |
| MOUNTING OPTIONS | Bail or flush |
Maps & Memory |
|
| ACCEPTS DATA CARDS |
2 microSD cards |
|---|---|
| WAYPOINTS |
5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER |
10 Hz |
| NMEA 2000 COMPATIBLE | |
| NMEA 0183 COMPATIBLE | |
| GPS | |
| SUPPORTS WAAS | |
Built-in Maps |
|
| (SOUNDER) TIDE TABLES | |
|---|---|
Optional Map Support |
|
| LAKEVÜ G3 | |
|---|---|
| LAKEVÜ G3 ULTRA | |
| GARMIN NAVIONICS+™ | |
| GARMIN NAVIONICS VISION+™ | |
| (SOUNDER) TOPO | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
Chartplotter Features |
|
| AIS | |
|---|---|
| DSC | |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | |
| ACTIVECAPTAIN® COMPATIBLE |
yes |
| SAILING FEATURES | |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | |
|---|---|
| POWER OUTPUT | 600 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
| (SOUNDER) SIDEVÜ | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | |
| LIVESCOPE | |

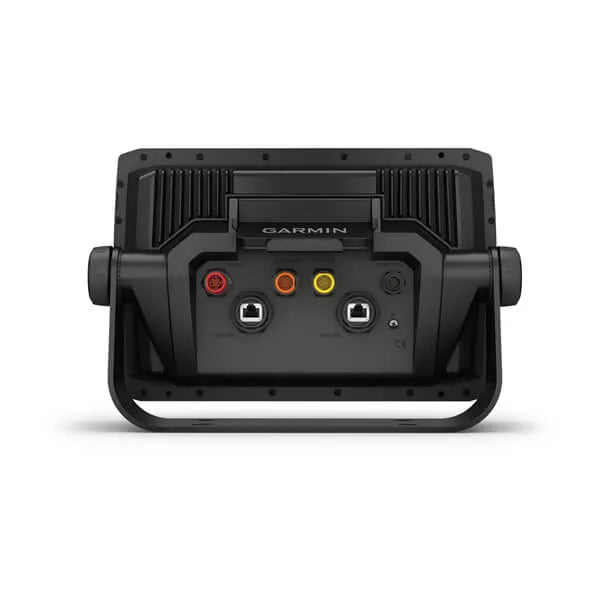

Connections |
|
| NMEA 2000 PORTS | 1 |
|---|---|
| CONNECTIONS NMEA0183 INPUT PORTS |
1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| GARMIN MARINE NETWORK PORTS |
2 (large connector) |
| 12-PIN TRANSDUCER PORTS | 1 LVS sonar; 1 scanning sonar |
Electrical Features |
|
| POWER INPUT | 10 to 18 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 2.8 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.0 A |
| MAXIMUM POWER USAGE AT 10 VDC | 24.4W |
- ECHOMAP Ultra 102sv with worldwide basemap
- GT56UHD-TM transducer
- Power/data cable
- Tilt mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
